Sale!
9910.0400.150.160G

9910.0400.150.160G

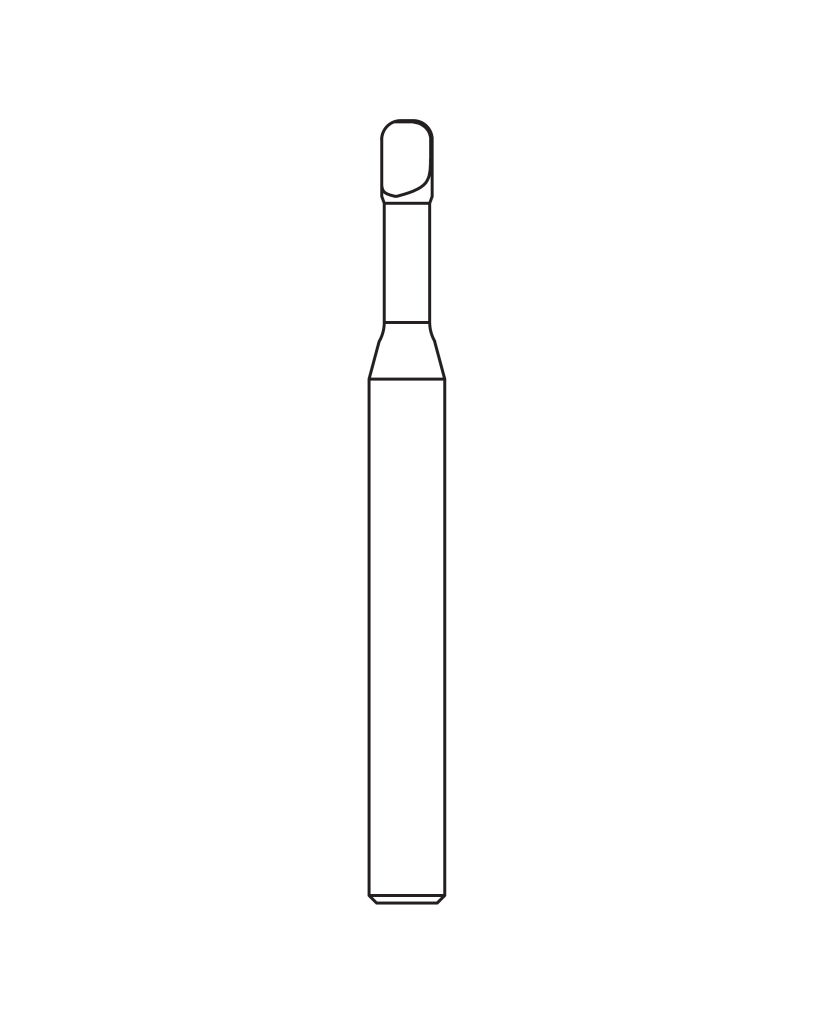

4.0mm 0-Flute Carbide Grinding Pin for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
Galvanic Diamond Coating, Reach: 16.0mm Radius: 1.50mm Shaft: 6mm.
MARLIN 3D Series

Original price was: $164.99.Current price is: $136.99.

187 in stock (can be backordered)

SKU: 9910.0400.150.160G Category: Tags: , , Brand:
  • Milling Material
    Alumina, Carbide, Ceramics, Glass
    Tool Type
    Grinding Pin
    Coating Type (CT)
    Galvanic Diamond Coating
    Flutes
    0
    Cutting Diameter (CD)
    4.0mm
    Corner Radius (CR)
    1.50mm
    Flute Length (FL)
    6.00mm
    Reach Length (RL)
    16.0mm
    Overall Length (OL)
    62mm
    Shank Diameter (SD)
    6mm
    Shaft Tolerance
    H4
    Special Tool Series
    Zecha Marlin 3D Series
    Measurement Protocol (to 1 Micron)
    No
    Internal Coolant
    no
    Shaft Coolant
    No
    Diamond Grain Size
    Course
